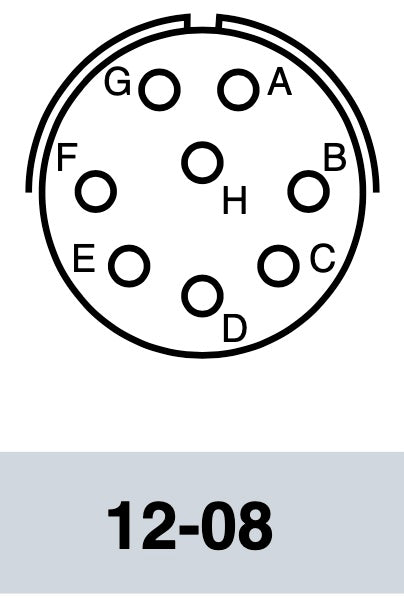

MS3470A12-8S MIL-Spec Flanged Receptacle Connector Kit, 8-Way
![](http://www.ksvlooms.com/cdn/shop/files/MILSpec12-8PlanForm_02c311fb-d076-4458-8f2e-8b0d5b4dcdfe.jpg?v=1720637631&width=1160)
Regular price
$43.49
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns
MS3470A12-8S Flanged Receptacle Connector Kit. This genuine MIL-Spec connector kit includes connector, terminals, cavity plugs, and insertion/extraction tool.
- 8-way connector
- Size 20 contacts x 8
- Terminal gender = Pin
- Shell size = 12
Information below is for reference (not included with kit)
- Backshell = M85049/60-2G12A
- Mating connector = MS3476A12-8P
- 90 degree boot option = 222K132 (or K142 if using splices)
- Straight boot option = 202K132 (or K142 if using splices)
