2 AWG Red Battery Cable (per foot)
Regular price
$4.73
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns

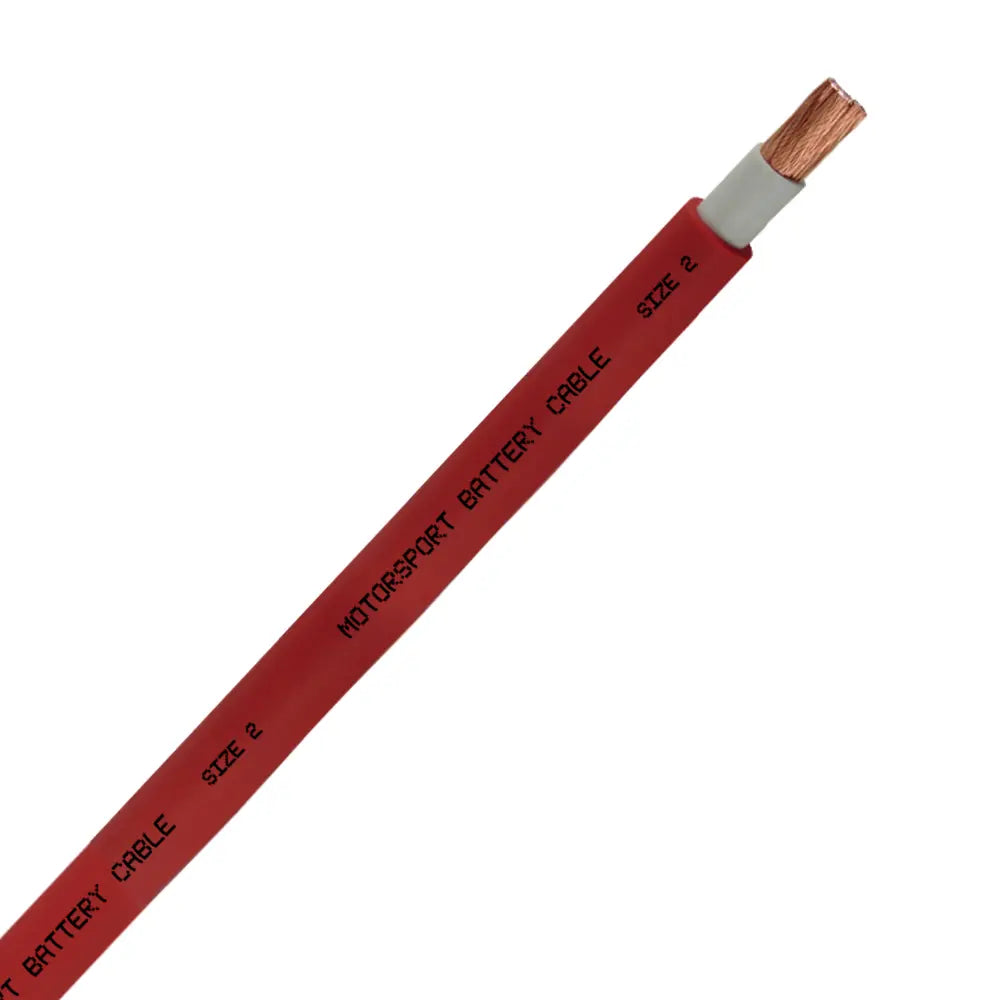

2 AWG Red Battery Cable. Sold by ft.
We can also cover the battery cable in Raychem DR-25 heat shrink to further protect the battery cable from the environment. If you would like that option, please select 'Yes' from menu.
This 2 gauge cable features a flexible black or red EPDM jacket for insulation with 0.07 thickness. This 2 AWG cable contains stranded 624/30 fully annealed bare copper conductors. This helps with the flexibility of the wire and adds to the conductivity that is needed in battery cable.
This cable is rated for power supply applications up to 600 volts AC.
AWG Size = 2
Cond. Material = Bare Copper
Conductor Stranding = 624/30
Jacket Material = Ethylene Propylene Diene Monomer Rubber (EPDM)
Max. Temp = 105C
Min. Temp = -50C
No. of Strands = 624
Nom. Insul. Thick. (in) = 0.060
Nom. O.D. (in) = 0.428
Strand Size = 30
AWG Size = 2
Cond. Material = Bare Copper
Conductor Stranding = 624/30
Jacket Material = Ethylene Propylene Diene Monomer Rubber (EPDM)
Max. Temp = 105C
Min. Temp = -50C
No. of Strands = 624
Nom. Insul. Thick. (in) = 0.060
Nom. O.D. (in) = 0.428
Strand Size = 30
Approx LBS/MFT = 238
